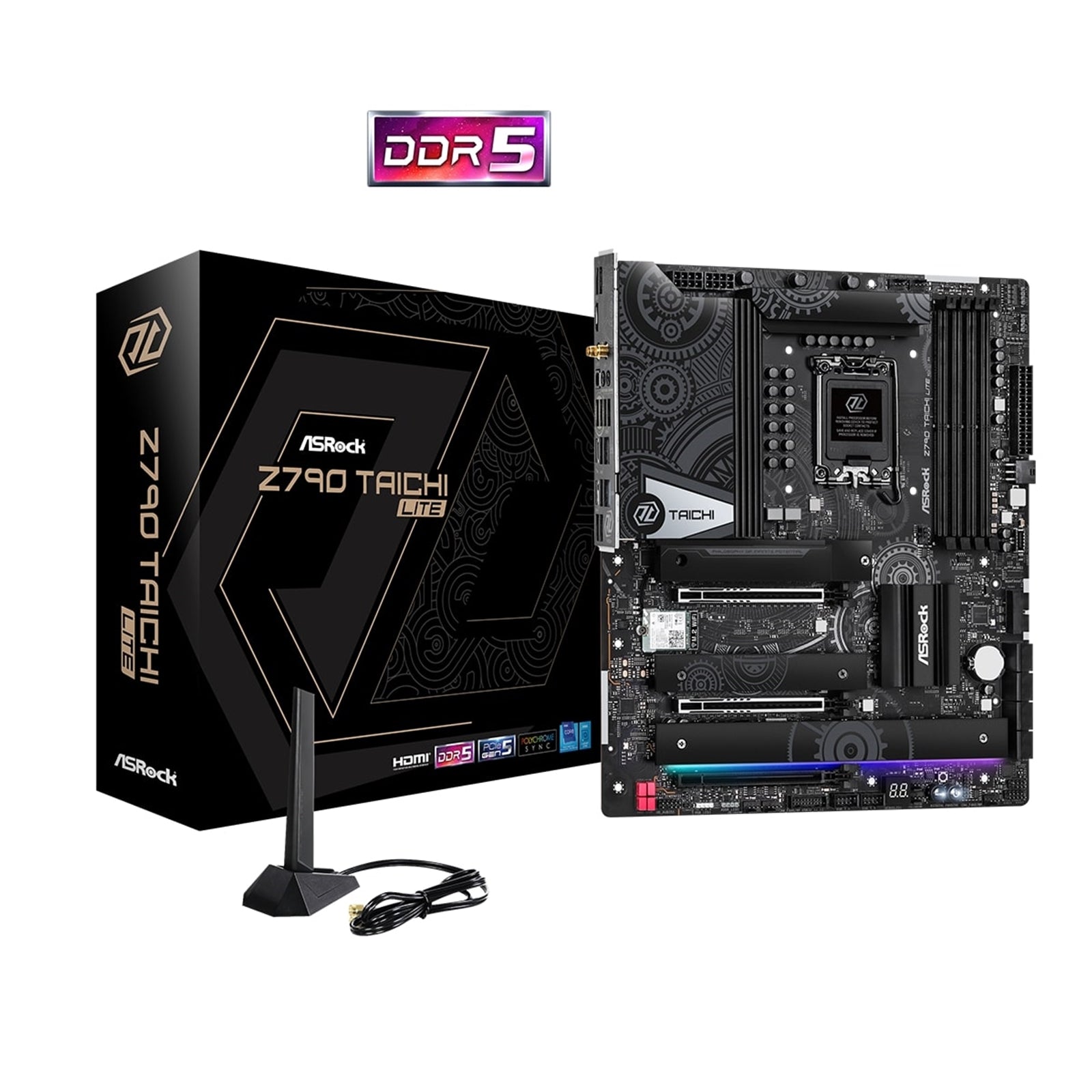

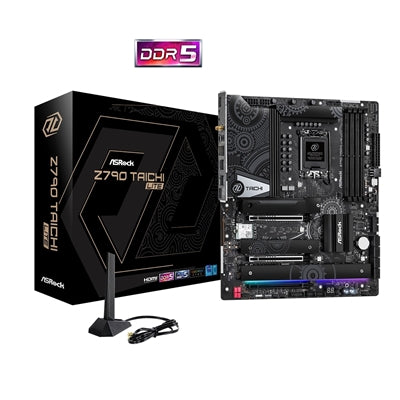

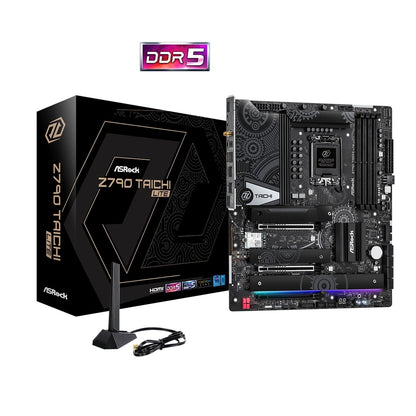

ASRock Z790 Taichi Lite Intel 1700 Socket Motherboard, E-ATX, 4x DDR5 Slots, 6x M.2 Sockets, 2x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 2x Thunderbolt
ASRock Z790 Taichi Lite Intel 1700 Socket Motherboard, E-ATX, 4x DDR5 Slots, 6x M.2 Sockets, 2x USB-C Port, Fitted I/O Shield, 2.5GbE LAN, Wi-Fi 6E, 1x HDMI Port / 2x Thunderbolt
Regular price
£385.30
Regular price
Sale price
£385.30
Unit price
/
per
Taxes included.
Couldn't load pickup availability
PHILOSOPHY OF INFINITE POTENTIAL
Taichi represents the philosophical state of undifferentiated absolute and infinite potential. A motherboard that fulfills every task – with style! Become like water. Shapeless, formless, versatile for any situation.
Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Flexible Integrated IO Shield
Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.
CPU
Supports 13th Gen & 12th Gen and next gen Intel Core Processors (LGA1700)
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Supports ASRock Hyper BCLK Engine
Chipset
Intel Z790
Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
Max. capacity of system memory: 192GB
Supports Intel Extreme Memory Profile (XMP) 3.0
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
2 x Intel Thunderbolt 4, supports HDCP 2.3 and max. resolution up to 8K 60Hz
Audio
5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
WIMA Audio Capacitors (For Front Outputs)
ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
Individual PCB Layers for R/L Audio Channel
Impedance Sensing on Rear Out port
Nahimic Audio
LAN
1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G)
Supports Killer LAN Software
Supports Killer DoubleShot™ Pro
1 x Gigabit LAN 10/100/1000 Mb/s (Intel I219V)
Wireless LAN
802.11ax Wi-Fi 6E Module
Supports IEEE 802.11a/b/g/n/ac/ax
Supports Dual-Band 2x2 160MHz with extended 6GHz band support
2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
Supports Bluetooth 5.3 + High speed class II
Supports MU-MIMO
Supports Killer LAN Software
Supports Killer DoubleShot Pro
Slots
CPU
2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modes
Chipset
1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Supports AMD CrossFire
15µ Gold Contact in VGA PCIe Slots (PCI1 & PCIE2)
Storage
CPU
1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_5, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
8 x SATA3 6.0 Gb/s Connectors
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB
2 x USB4 Thunderbolt 4 Type-C (Rear)
1 x USB 3.2 Gen2x2 Type-C (Front)
2 x USB 3.2 Gen2 Type-A (Rear)
10 x USB 3.2 Gen1 (6 Rear, 4 Front)
6 x USB 2.0 (2 Rear, 4 Front)
Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
1 x 12V 6 pin Power Connector for Fast Charging (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
1 x Clear CMOS Button
1 x Dr. Debug with LED
1 x Power Button with LED
1 x Reset Button with LED
Rear Panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x Optical SPDIF Out Port
2 x USB4 Thunderbolt 4 Type-C Ports (40 Gb/s for USB4 protocol; 40Gb/s for Thunderbolt protocol) 2 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
6 x USB 3.2 Gen1 Ports (USB32_12 are Lightning Gaming Ports. USB32_34 support Ultra USB Power.)
2 x USB 2.0 Ports
2 x RJ-45 LAN Ports
1 x Line Out Jack (Gold Audio Jack)
1 x Microphone Input Jack (Gold Audio Jack)
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
Killer Control Center
ASRock Polychrome SYNC
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
Accessories
1 x User Manual
4 x SATA Data Cables
1 x Wireless Dongle USB Bracket
1 x ASRock WiFi 2.4/5/6 GHz Antenna
4 x Screws for M.2 Sockets
Form Factor
EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
8 Layer PCB
OS
Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
CEC Tier II ready
