ASROCK

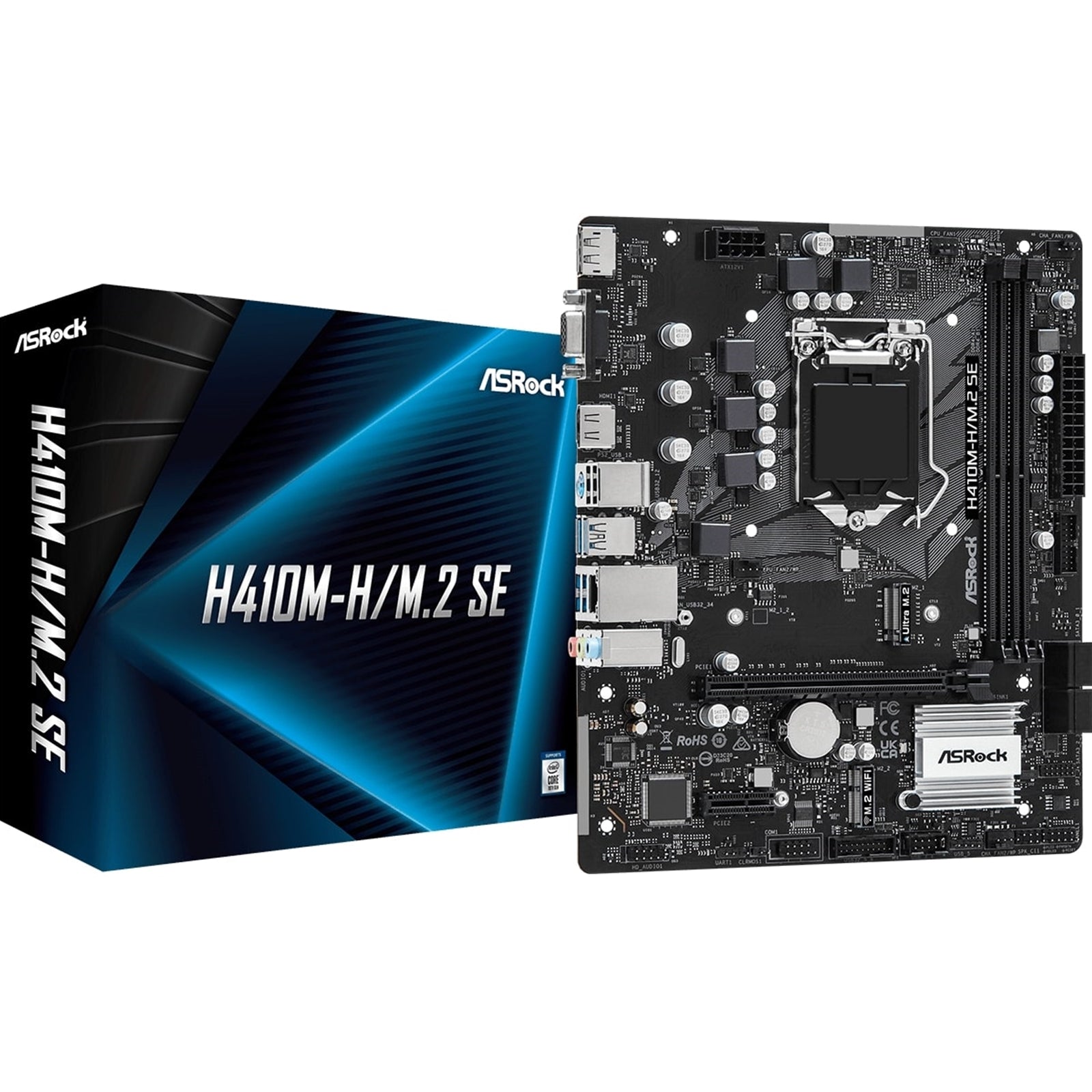

ASRock H410M-H/M.2 SE Super Alloy Intel 1200 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x Display Port / 1x HDMI
ASRock H410M-H/M.2 SE Super Alloy Intel 1200 Socket Motherboard, Micro-ATX, 2x DDR4 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 1x Display Port / 1x HDMI
Regular price
£53.06
Regular price
Sale price
£53.06
Unit price
/
per
Taxes included.
Couldn't load pickup availability
H410M-H/M.2 SE
Key Features
Supports 10th Gen Intel Core Processors (Socket 1200)
Supports DDR4 2933MHz
Intel H370 Chipset
1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key-E for WiFi
Graphics Output Options : HDMI, D-Sub, DisplayPort
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
4 SATA3, 1 M.2 (PCIe Gen3 x4 & SATA3)
8 USB 3.2 Gen1 (4 Front, 4 Rear)
5 USB 2.0 (3 Front, 2 Rear)
Gigabit LAN
TPM Module onboard
Supports ASRock Auto Driver Installer
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
USB3.2 Gen1
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen1 technology advances the data transfer rate up to 5Gb/s. ASRock provides USB 3.2 Gen1 ports onboard allows you to have a stunning data transfer experience.
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Specification
CPU
Supports 10th Gen Intel Core Processors (Socket 1200)
5 Power Phase design
Supports Intel Turbo Boost Max 3.0 Technology
Chipset
Intel H370
Memory
Dual Channel DDR4 Memory Technology
2 x DDR4 DIMM Slots
Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
Supports ECC UDIMM memory modules (operate in non-ECC mode)
Max. capacity of system memory: 64GB
Supports Intel Extreme Memory Profile (XMP) 2.0
BIOS
128Mb AMI UEFI Legal BIOS with multilingual GUI support
ACPI 6.0 Compliant wake up events
SMBIOS 2.7 Support
CPU Core/Cache, GT, DRAM, VPPM, PCH 1.05V, VCCST, VCCSA Voltage Multi-adjustment
Graphics
Supports Intel UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, Intel Clear Video HD Technology, Intel Insider, Intel UHD Graphics
DirectX 12
HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
Three graphics output options: D-Sub, DisplayPort 1.2 and HDMI
Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Supports Surge Protection
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
1 x Realtek RTL8111H
Supports Wake-On-LAN
Supports Energy Efficient Ethernet 802.3az
Supports PXE
Slots
1 x PCI Express 3.0 x16 Slot
1 x PCI Express 3.0 x1 Slot
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 15), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Connector
SPI TPM 2.0 IC
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Rear Panel I/O
2 x Antenna Mounting Points
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DisplayPort 1.2
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock XFast LAN
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
Accessories
User Manual, I/O Shield
2 x SATA Data Cables
2 x Screws for M.2 Sockets
Hardware Monitor
Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
CASE OPEN detection
Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, PCH, VCCSA, VCCST
Form Factor
Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
Solid Capacitor design
OS
Microsoft Windows 10 64-bit / 11 64-bit
Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
